Delta Standard EtherCAT Motion Control Axis Card – PCI-L221-P1D0

PRODUKTPARAMETER

  • Supports EtherCAT Host functionality for distributed automation
  • Controls up to 32 motion axes across 64 stations
  • High-speed communication with minimum 0.5ms cycle
  • Reliable, scalable, and precise motion control for industrial applications
Beschreibung
FAQs
Angebot anfordern

Beschreibung

PRODUKTMERKMALE

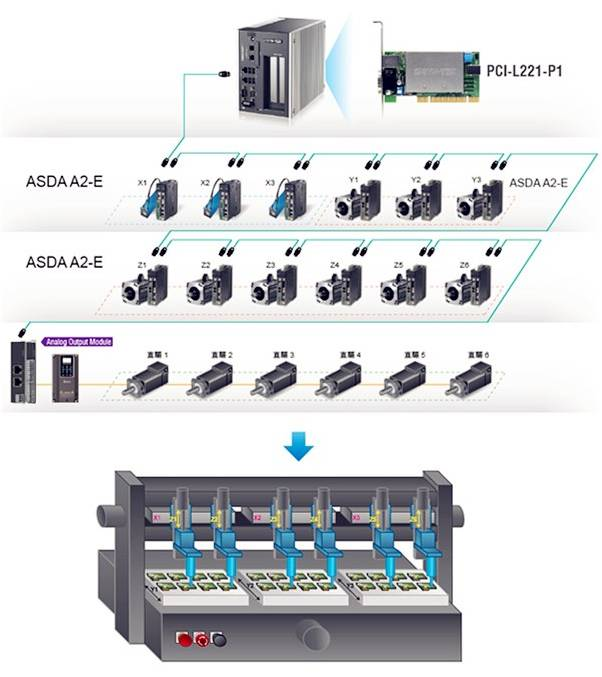

The Delta PCI-L221-P1D0 Standard EtherCAT Motion Control Axis Card supports EtherCAT Host functionality, providing reliable motion control for distributed automation systems.

It can control up to 64 stations, including 32 motion axes, allowing efficient multi-axis operation in complex automation setups.

The card supports high-speed communication with a minimum cycle of 0.5ms, ensuring responsive and precise motion performance.

Designed for EtherCAT networks, the PCI-L221-P1D0 delivers scalable, accurate, and dependable motion control for industrial automation applications.

ANWENDUNGSBEREICHE

TECHNISCHE DATEN

ArtikelSpezifikation
Number of Units1 set
Serial Control PortRJ45
Transmission CableCAT-5e
Transmission Speed100Mbps
Communication RangeUp to 100m
Master/Slave ModulesUp to 64
Motion ControlSynchronized control up to 16 axes
Digital Inputs8-CH isolated, SINK/SOURCE type, 24Vdc (5mA/CH)
Digital Outputs4-CH isolated, SINK, 24Vdc (100mA/CH)
Technical StandardPCI Spec. 2.2, supports 32-bit, 3.3V/Vcc operation
Power Consumption+5Vcc at 1A typical
Betriebstemperatur0°C ~ 50°C
