Delta Hybrid Remote Digital Input/Output Module – HMC-RIO3232RT5
PRODUKTPARAMETER
Beschreibung
PRODUKTMERKMALE

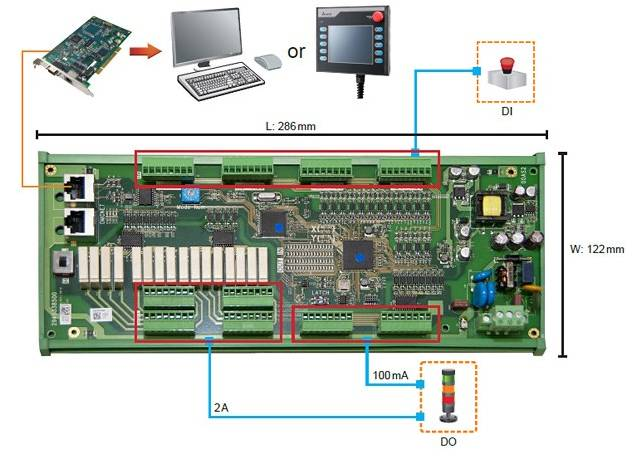

The Delta Hybrid Remote Digital Input/Output Module (HMC-RIO3232RT5) is a versatile distributed module designed to provide reliable remote control of digital signals through DMCNET master stations.
This hybrid module combines both digital input and output functions, allowing centralized monitoring and flexible control of industrial automation systems.
Its distributed architecture reduces wiring complexity, simplifies installation, and enhances scalability for large-scale automation networks.
Fully compatible with DMCNET master stations, the HMC-RIO3232RT5 ensures accurate signal acquisition and output, delivering stable and dependable operation in demanding industrial environments.
TECHNISCHE DATEN
General Specifications (HMC-RIO3232RT5)
| Parameter | Spezifikation |
|---|---|
| Power Supply | 24V DC (+10% ~ +15%) / 50 mA |
| Power Consumption | 1.2 W |
| Noise Immunity | RS: Frequency 80MHz~1GHz, 1.4GHz~2.2GHz, Test level 10V/mESD: Contact +8KV, Air +18KVEFT: ±2KV (Power port, 525KV/10ms), Surge: ±2KV (Relay power port) |
| Operating / Storage Environment | Operating: 0℃~55℃, 10~90% RH;Storage: -20℃~60℃, 10~90% RH |
| Vibration Resistance | IEC61131-2: 5Hz~8.3Hz 3.5mm, 8.3Hz~150Hz: 1G |
| Shock Resistance | IEC60068-2-27: 11ms, 15G Peak, X/Y/Z directions 6 times each |
| Weight | Approx. 460 g |
Input Electrical Specifications
| Parameter | Spezifikation |
|---|---|
| Input Type | DC (SINK / SOURCE) |
| Input Voltage | 24V DC (5 mA) |
| Input Impedance | 4.7 kΩ |
| Operating Threshold | OFF → ON: ≥16.5V; ON → OFF: ≤5V |
Output Electrical Specifications
| Parameter | Spezifikation |
|---|---|
| Output Type | Transistor (TR) / Relay (RELAY) |
| Current Rating | TR: 100 mA / 1 point; RELAY: 2 A / 1 point |
| Voltage Rating | 24V DC (+10% ~ +15%) / ~250 V (Relay only) |
| Maximum Switching Current | TR: 100 mA / 1 point; RELAY: 2 A / 1 point |
| Minimum Load | TR: 1 kΩ; RELAY: None |
| Response Time | TR: ON→OFF 115 µs, OFF→ON 12 µs; RELAY: ON→OFF 10 ms, OFF→ON 10 ms |
