Delta DIN Rail Power Module Industrial Power
PRODUCT PARAMETERS
- Multiple rated outputs: 48V, 24V, 12V, 5V with minimum 20ms hold-up time
- Robust housing compliant with IEC 60068-2, resistant to impact and vibration
- Overvoltage, overload, and temperature protection for safe operation
- CliQ II series backup and buffer modules provide enhanced system stability
Description
FAQs
Request A Quote
Description
PRODUCT FEATURES

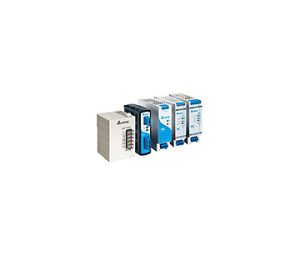

The Delta DIN Rail Power Modules, including DVP, CliQ, CliQ II, PMC, and PMT series, provide reliable industrial power with rated outputs of 48V, 24V, 12V, and 5V, ensuring a minimum hold-up time of 20ms.
Engineered for harsh industrial environments, these modules feature robust housings built according to IEC 60068-2 standards, offering resistance to impact and vibration, and constructed with high-quality durable materials.
Each module includes overvoltage, overload, and temperature protection, with input voltage ranges of 85~264 Vac (single-phase) and 320~575 Vac (three-phase), and multiple output terminals for convenient wiring and installation.
The CliQ II series distinguishes between backup and buffer modules, providing enhanced system stability and high-efficiency performance for demanding industrial applications.
TECHNICAL SPECIFICATIONS
| Model | Phase (1/2/3) | PFC | Output Voltage | Output Current | Output Power | Input Voltage Range | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|
| DRL-12V75W1AZ | 1 (•) | – | 12V | 6.25A | 75W | 85-264Vac | 123.6×27×102 mm(4.86×1.06×4.01 inch) |
| DRL-24V75W1AZ | 1 (•) | – | 24V | 3.125A | 75W | 85-264Vac | 123.6×27×102 mm(4.86×1.06×4.01 inch) |
| DRL-48V75W1AZ | 1 (•) | – | 48V | 1.57A | 76.36W | 85-264Vac | 123.6×27×102 mm(4.86×1.06×4.01 inch) |
| DRL-12V120W1EN | 1 (•) | – | 12V | 10A | 120W | 90-264Vac | 123.6×30×117.2 mm(4.87×1.18×4.61 inch) |
| DRL-24V120W1END | 1 (•) | – | 24V | 5.0A | 120W | 90-264Vac | 123.6×30×117.2 mm(4.87×1.18×4.61 inch) |
| DRL-48V120W1EN | 1 (•) | – | 48V | 2.5A | 120W | 90-264Vac | 123.6×30×117.2 mm(4.87×1.18×4.61 inch) |
| DRL-12V240W1EN | 1 (•) | 3 (•) | 12V | 20.0A | 240W | 90-264Vac | 123.6×40×117.2 mm(4.87×1.57×4.61 inch) |
| DRL-24V240W1END | 1 (•) | 3 (•) | 24V | 10.0A | 240W | 90-264Vac | 123.6×40×117.2 mm(4.87×1.57×4.61 inch) |
| DRL-48V240W1EN | 1 (•) | 3 (•) | 48V | 5.0A | 240W | 90-264Vac | 123.6×40×117.2 mm(4.87×1.57×4.61 inch) |
| DRL-24V480W1A□ | 1 (•) | 3 (•) | 24V | 20.0A | 480W | 85-264Vac | 123.6×85.5×128.5 mm(4.87×3.37×5.06 inch) |
