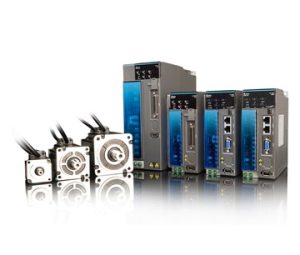

Delta ASDA-M Series AC Servo System
PRODUCT PARAMETERS
- Three-Axis Integration: Combines three servo drives in one compact unit.
- Zero-Delay Synchronization: Real-time data exchange between axes.
- Advanced Interpolation: Supports linear, circular, and helical motion control.
- Expanded Control Capability: Built-in PLC and G-code interpreter support.
Description
FAQs
Request A Quote
Description
PRODUCT FEATURES
The Delta ASDA-M Series AC Servo System integrates three servo drives into a single housing, enabling true three-axis synchronous control with zero communication delay between axes. This architecture ensures precise coordination and stable motion performance for multi-axis applications.
Supporting linear, circular, and helical interpolation directly within the drive, the ASDA-M series enhances motion control flexibility without external controllers. The ASD-M-R variant includes a built-in compact PLC, strengthening sequential control capability and enabling secondary development for customized automation tasks.
Featuring a new gantry control structure, the ASDA-M system achieves accurate synchronization for rigid mechanical connections. Integrated circular analysis functions improve system diagnostics, while the built-in G-code interpreter expands motion command sources, making the ASDA-M an advanced solution for high-level motion control systems.
APPLICATION FIELDS
| Robot | Gantry Control Equipment | Printing Equipment |
|---|---|---|
| Engraving Machine | Plotter | Flame Cutting Machine |
TECHNICAL SPECIFICATIONS
| Feature | Specification |
|---|---|
| Capacity Range | 750W, 1.5kW, 2.0kW |
| Multi-Axis Control Performance | Excellent multi-axis control capabilities |
| Integrated Three-Axis Servo | Combines three-axis servos on the same machine base |
| Built-in Controllers | Motion controller and sequence logic controller |
| Multi-Axis Interpolation | Command synthesized internally with high synchronization |
| Gantry Synchronization | Advanced gantry synchronous control |
| Internal Position Editing | Flexible internal position editing mode |
| G-Code Interpreter | Built-in, supports extended motion command sources |
| Electronic Cam (E-CAM) | Flexible electronic cam functionality |
| Closed-Loop Control | Robust full closed-loop control for improved mechanical end positioning accuracy |
| PC Software Features | New PC software capabilities |
| ASDA-Soft | Built-in circular analysis function |
| EzASD | Provides PLC and Motion development environment |
| High-Precision Servo Motor | Supports incremental and absolute encoders |
| Encoder Accuracy | Incremental encoder up to 1,280,000 p/rev |
| High-Speed Motion Control Network | Timely and reliable, supports DMCNET or CANopen protocol |
| Integration with Delta HMC | Enables integrated control system via DMCNET communication architecture |
| DMCNET I/O Expansion | Supports DMCNET communication I/O expansion modules |
| Advanced Resonance Suppression | Built-in automatic low-frequency swing suppression and high-frequency resonance suppression |
| FFT Oscilloscope | Built-in FFT (Fast Fourier Transform) oscilloscope in tuning software to monitor resonance points for precise suppression settings |
