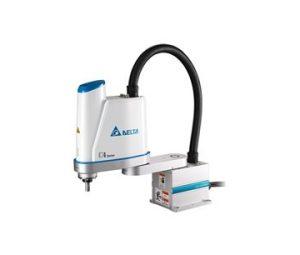

The Delta DRS60C6 Series horizontal articulated robot is suitable for electronics, motors, plastics, packaging, and metal industries for tasks such as component insertion, screwing, assembly, gluing, transfer, soldering, handling, and packaging.
The C-series basic model features high flexibility and integration, combined with peripheral automation components such as servo systems, vision systems, and linear modules, supporting standalone or transfer platform applications, multi-model mixed production, and rapid process reconfiguration while maintaining consistent quality.
The Delta DRS60C6 robot allows quick and easy integration into automated production lines, enhancing flexibility, supporting intelligent production, and achieving efficient automation that improves quality, productivity, and labor efficiency.
APPLICATION FIELDS
Industry
Function
Consumer Electronics, Electronic Motors, Rubber & Plastics, Packaging, Metal Products, etc.
Plug-in, Screw Locking, Assembly, Gluing, Soldering, Handling, Stacking, Inspection, etc.
TECHNICAL SPECIFICATIONS
Model
DRS60C6SS1BN002
Axes
4
Mounting Type
Tabletop
Max Reach
600 mm
Rated / Max Payload
2 kg / 6 kg
Motor Power J1
400 W
Motor Power J2
200 W
Motor Power J3
100 W
Motor Power J4
100 W
Max Speed J1+J2
5000 mm/s
Max Speed J3
1050 mm/s
Max Speed J4
200 °/s
Motion Range J1
±133°
Motion Range J2
±153°
Motion Range J3
200 mm
Motion Range J4
±360°
Standard Cycle Time*
0.39 s
Repeatability J1+J2
±0.015 mm
Repeatability J3
±0.01 mm
Repeatability J4
±0.01°
Rated Down Force (J3)
150 N
Allowable Inertia – Rated
0.01 kg·m²
Allowable Inertia – Max
0.08 kg·m²
Customer Cable Connector
15 Pin D-Sub
Customer Air Tubing
∅4 mm x1, ∅6 mm x2
Robot Weight
20 kg
FAQs
Which Delta power supply products do you offer?
As a trade-and-manufacturing integrated company, we offer a full range of Delta power supplies, including switching power supplies, industrial power modules, and DC regulated power supplies, suitable for industrial automation and various electronic equipment.
Can the products be customized?
Yes. We provide customized solutions based on customer requirements, including voltage, power, and functional extensions, with professional technical support to ensure feasibility.
How are the products shipped?
We ship via reliable logistics and courier services, offering full tracking to ensure the products reach customers safely and on time.
What is the ordering process?
The process is simple: select the model → submit requirements → confirm the solution → arrange payment → delivery and technical guidance. We provide full support to ensure each step is completed smoothly.
What after-sales services are included?
We provide original manufacturer warranty, spare parts supply, operation guidance, maintenance, and troubleshooting services to ensure Delta power supplies operate stably and reliably.
