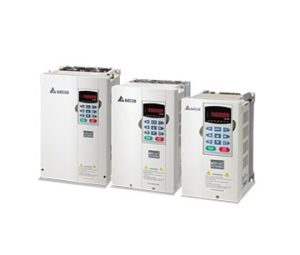

Delta VFD-B Series Inverter
PRODUCT PARAMETERS
- Output frequency 0–400 Hz
- Adjustable V/f curve and vector control
- Built-in PID feedback control
Description
FAQs
Request A Quote
Description
PRODUCT FEATURES
The Delta VFD-B Series Inverter provides an output frequency range of 0–400 Hz and supports adjustable V/f curves along with vector control, ensuring precise and flexible motor performance for various industrial applications.
It features multi-segment speed programming, built-in PID feedback, automatic torque adjustment, slip compensation, and optional PG card capability for closed-loop speed control, delivering reliable and accurate operation under varying load conditions.
The series includes multiple voltage models, integrated Modbus communication, compatibility with DN-02, LN-01, and PD-01 modules, and a heatsink temperature detection function, enhancing system reliability and durability during continuous industrial use.
APPLICATION FIELDS
| BUILDING AIR CONDITIONING | WOOD CARVING MACHINE | MACHINE TOOL |
|---|---|---|
| WASTEWATER TREATMENT SYSTEM | CRANE X-Y AXIS | WASHING MACHINE |
| FLAT IRONING MACHINE | AIR COMPRESSOR | FREIGHT ELEVATOR |
| ESCALATOR | CIRCULAR LOOM | WEFT KNITTING MACHINE |
| NOODLE MAKING MACHINE | FOUR-SIDED WOOD PLANER | SPINNING MACHINE |
TECHNICAL SPECIFICATIONS
| 230V SINGLE/THREE-PHASE SERIES | 007 | 015 | 022 | 037 | 055 | 075 | 110 | 150 | 185 | 220 | 300 | 370 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model VFD-B□□□B | 007 | 015 | 022 | 037 | 055 | 075 | 110 | 150 | 185 | 220 | 300 | 370 |
| Applicable Motor Power (kW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Applicable Motor Power (HP) | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| Rated Output Capacity (kVA) | 1.9 | 2.5 | 4.2 | 6.5 | 9.5 | 12.5 | 18.3 | 24.7 | 28.6 | 34.3 | 45.7 | 55 |
| Rated Output Current (A) | 5 | 7 | 11 | 17 | 25 | 33 | 49 | 65 | 75 | 90 | 120 | 145 |
| Output Frequency Range (Hz) | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 |
| Input Current (A) | 11.9/5.7 | 15.3/7.6 | 22/15.5 | 20.6 | 26 | 34 | 50 | 60 | 75 | 90 | 110 | 142 |
| Rated Voltage / Frequency | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz | 200–240V, 50/60Hz |
460V THREE-PHASE SERIES
| Model VFD-□□□ B | 007 | 015 | 022 | 037 | 055 | 075 | 110 | 150 | 185 | 220 | 300 | 370 | 450 | 550 | 750 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output | |||||||||||||||
| Applicable Motor Power (kW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Applicable Motor Power (HP) | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 |
| Rated Output Capacity (kVA) | 2.3 | 3.2 | 4.2 | 6.5 | 9.5 | 13 | 18.5 | 24.7 | 28.6 | 34.3 | 45.7 | 56 | 69 | 84 | 114 |
| Rated Output Current (A) | 2.7 | 4.2 | 5.5 | 8.5 | 13 | 18 | 24 | 32 | 38 | 45 | 60 | 73 | 91 | 110 | 150 |
| Maximum Output Voltage (V) | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage |
| Output Frequency Range (Hz) | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 |
| Carrier Frequency Range (kHz) | 1–15 | 1–15 | 1–15 | 1–15 | 1–15 | 1–15 | 1–9 | 1–9 | 1–9 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 |
| Input | |||||||||||||||
| Input Current (A) | 3.2 | 4.3 | 5.9 | 11.2 | 14 | 19 | 25 | 32 | 39 | 49 | 60 | 63 | 90 | 130 | 160 |
| Rated Voltage / Frequency | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz | 3-Phase 380–480V, 50/60Hz |
| Allowable Input Voltage Variation | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) | +10% (42–528V) |
| Allowable Power Frequency Variation | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) | -5% (47–63Hz) |
| Cooling System | Natural | Natural | Natural | Natural | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air |
| Weight (Kg) | 2.7 | 3.2 | 4.5 | 4.5 | 3.2 | 4.5 | 6.8 | 8 | 10 | 13 | 13 | 13 | 13 | 36 | 36 |
575V THREE-PHASE SERIES
| Model VFD-B | 007 | 015 | 022 | 037 | 055 | 075 | 110 | 150 | 185 | 220 | 300 | 370 | 450 | 550 | 750 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output | |||||||||||||||
| Applicable Motor Power (kW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 |
| Applicable Motor Power (HP) | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 |
| Rated Output Capacity (kVA) | 1.7 | 3.5 | 4.5 | 7.5 | 10 | 13.4 | 18.9 | 21.9 | 26 | 29 | 39 | 40.8 | 51.8 | 61.7 | 75.7 |
| Rated Output Current (A) | 1.7 | 3.5 | 4.5 | 7.5 | 10 | 13.5 | 19 | 22 | 27 | 34 | 41 | 52 | 62 | 80 | 100 |
| Maximum Output Voltage (V) | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage | Corresponding Input Voltage |
| Output Frequency Range (Hz) | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 | 0.1–400 |
| Carrier Frequency Range (kHz) | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–8 | 1–8 | 1–8 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 |
| Input | |||||||||||||||
| Input Current (A) | 2.0 | 3.6 | 4.9 | 9.9 | 10.8 | 14.3 | 19 | 22 | 27.7 | 37 | 41 | 52 | 62 | 95 | 117 |
| Rated Voltage / Frequency | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz | 3-Phase 500–600V, 50/60Hz |
| Allowable Input Voltage Variation | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) | -15%~+10% (425–660V) |
| Allowable Power Frequency Variation | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) | ±5% (47–63Hz) |
| Cooling System | Natural | Natural | Natural | Natural | Natural | Natural | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air |
| Weight (Kg) | 2.7 | 3.2 | 4.5 | 6.8 | 8 | 10 | 13 | 13 | 13 | 36 | 36 | 36 | 36 | 50 | 50 |
