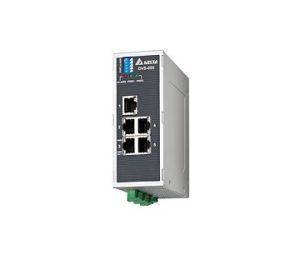

Delta DVS-005I00 Fast Ethernet Switch — 5-Port

PRODUCT PARAMETERS

  • 12–48 VDC power input for stable operation
  • Supports 5 Fast Ethernet ports
  • Compatible with industrial protocols (EtherNet/IP, Profinet, CC-Link IE, DNP 3.0)
  • Reliable network connectivity for enterprise and industrial applications
Description
FAQs
Request A Quote

Description

PRODUCT FEATURES

The Delta DVS-005I00 is a reliable 5-port Fast Ethernet switch designed for industrial and enterprise networks. It features 12–48 VDC power input for stable operation in various power environments.

The switch is compatible with industrial protocols including EtherNet/IP, Profinet, CC-Link IE, and DNP 3.0, allowing seamless integration with automation and control systems for consistent and efficient network performance.

TECHNICAL SPECIFICATIONS

CategoryItemSpecification
Standards & ProtocolsIEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) and 100Base-FX, IEEE 802.3x Flow Control
Switching TechnologyStore and ForwardIEEE 802.3x full-duplex flow control, half-duplex backpressure control
InterfaceFast Ethernet RJ45 Port10/100Base-T(X), auto MDI/MDI-X, auto-negotiation & speed detection
PerformanceSwitching Capacity1 Gbps, line rate, non-blocking
Forwarding Rate1.5 Mpps
MAC Address Table1K
Packet Buffer512K bits
Power RequirementsInput Voltage12 ~ 48 VDC, 1 terminal block
Max Input Current0.24A
Overload ProtectionBuilt-in, max 3A
Reverse Polarity ProtectionBuilt-in
Hold-up TimeMin. 13ms @ 24VDC
MechanicalEnclosureIP40 reinforced aluminum
Dimensions (H × W × D)145.3 mm × 45 mm × 108.7 mm
Weight300 g
MountingIndustrial DIN-rail & wall-mount
EnvironmentalOperating Temperature-10℃ ~ 60℃ (14℉ ~ 140℉), tested @ -25℃ ~ 70℃ (-13℉ ~ 158℉)
Storage Temperature-40℃ ~ 85℃ (-40℉ ~ 185℉)
Operating Humidity5% ~ 95% (non-condensing)
CertificationSafety StandardUL 508, EN 60950-1, IEC 61131-2
EMIFCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55022
EMSIEC 61000-6-2
Industrial Environment TestsLow Temp: IEC 60068-2-1, High Temp: IEC 60068-2-2, Humidity: IEC 60068-2-30, Shock: IEC 60255-21-2, Free Fall: IEC 60068-2-32, Vibration: IEC 60068-2-6
Hi-Pot1.5 kV
