Delta DTB Series Temperature Controller
PRODUCT PARAMETERS
- Linear voltage control output
- Dual-loop output for heating and cooling
- Rapid response to set temperature
- Efficient temperature management system
Description
FAQs
Request A Quote
Description
PRODUCT FEATURES
The Delta DTB Series temperature controller features a linear voltage control output for precise temperature management.
It adopts dual-loop output control, allowing simultaneous heating and cooling operations.
The system ensures rapid response to reach the target temperature efficiently.
TECHNICAL SPECIFICATIONS
| Item | Specifications |
|---|---|
| Product Name | High-Speed Smart Temperature Controller |
| Input Power | 100~240Vac, 50/60Hz; 24Vdc ±10% |
| Display Method | LCD. Current temperature: orange, Set temperature: green |
| Input Sensors | Thermocouples: K, J, T, E, N, R, S, B, L, U, TXKRTDs: PT100, JPT100Resistance: Cu50, Ni120Analog Input: 0~5V, 0~10V, 0~20mA, 4~20mA, 0~50mV |
| Control Method | PID, programmable PID, Fuzzy, Self-tuning, Manual, On/Off |
| Display Scale | Selectable: one decimal place or no decimal |
| Sampling Rate | Analog input: 0.1s; Thermocouple/RTD: 0.1s |
| Operating Temp. | 0~50℃ |
| Operating Humidity | 35~80% RH (non-condensing) |
| Item | Specifications |
|---|---|
| Product Name | Next-Generation Smart Temperature Controller |
| Input Power | 100~240V AC, 50/60Hz |
| Display Method | LCD. Current temperature: red, Set temperature: green |
| Input Sensors | Thermocouples: K, J, T, E, N, R, S, B, L, U, TXKRTDs: PT100, JPT100Resistance: Cu50, Ni120 |
| Control Method | On/Off, PID, Manual |
| Display Scale | Selectable: one decimal place or no decimal |
| Sampling Rate | Thermocouple/RTD: 0.1s |
| Operating Temp. | 0~50℃ |
| Operating Humidity | 35~80% RH (non-condensing) |
| Item | Specifications |
|---|---|
| Product Name | Standard Function Temperature Controller |
| Input Power | 100~240V AC, 50/60Hz |
| Operating Voltage Range | Rated voltage 85%~110% |
| Power Consumption | Max. 5VA |
| Display Method | Dual-row seven-segment LED; Current temperature: red, Set temperature: green |
| Input Temperature Sensor | Thermocouples: K, J, T, E, N, R, S, B, U, L, TXKRTDs: PT100, JPT100 |
| Display Scale | Selectable: one decimal place or no decimal |
| Control Method | PID, On/Off, or Manual Output |
| Control Output Types | Relay Output: 250V AC, 5A, SPDT (DTA4848: SPST)Voltage Pulse Output: DC 14V, max 40mACurrent Output: DC 4~20mA (load impedance <600Ω) |
| Sampling Cycle | 0.5 s |
| Communication Function | RS-485 digital communication, supports 2,400~38,400 bps (optional) |
| Communication Protocol | Modbus RTU/ASCII format (optional) |
| Vibration Resistance | 10~55Hz, 10 m/s², 3-axis, 10 min |
| Shock Resistance | Max 300 m/s², 3-axis, 6 directions, 3 times each |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~65℃ |
| Operating Altitude | Below 2,000 m |
| Operating Humidity | 35~85% RH (non-condensing) |
| Panel Protection Rating | IP65 |
| Item | Specifications |
|---|---|
| Product Name | Advanced Function Temperature Controller |
| Input Power | 100~240V AC, 50/60Hz; 24V DC ±10% |
| Operating Voltage Range | Rated voltage 85%~110% |
| Power Consumption | 5 VA |
| Display Method | Dual-row seven-segment LED, 4-digit display; Current temperature: red, Set temperature: green |
| Input Temperature Sensor | Thermocouples: K, J, T, E, N, R, S, B, L, U, TXKRTDs: PT100, JPT100Analog Input: 0~5V, 0~10V, 0~20mA, 4~20mA, 0~50mV |
| Display Scale | Selectable: one decimal place or no decimal |
| Control Method | PID, Programmable PID, Manual, or On/Off |
| Control Output Types | Relay Output: SPDT (DTB4848/DTB4824: SPST), max 250V AC, 5A resistive loadVoltage Pulse Output: 14V DC, max 40mACurrent Output: DC 4~20mA (load impedance <600Ω)Analog Voltage Output: 0~10V |
| Sampling Cycle | Analog Input: 0.15 s; Thermocouple or RTD: 0.4 s |
| Communication Function | RS-485 digital communication, supports 2,400~38,400 bps |
| Communication Protocol | Modbus RTU/ASCII format |
| Vibration Resistance | 10~55Hz, 10 m/s², 3-axis, 10 min |
| Shock Resistance | Max 300 m/s², 3-axis, 6 directions, 3 times each |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~65℃ |
| Operating Altitude | Below 2,000 m |
| Operating Humidity | 35~80% RH (non-condensing) |
| Panel Protection Rating | IP65 |
| Item | Specifications |
|---|---|

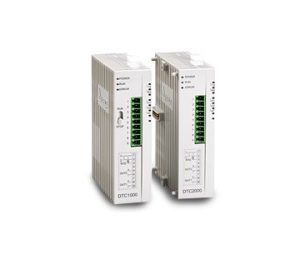

| Product Name | Multi-Channel Modular Temperature Controller |
| Input Power | 24V DC, probe switch power |
| Operating Voltage Range | Rated voltage 90%~110% |
| Power Consumption | Max. 10W + 3W × DTC2000 per unit (up to 7 units can be connected in parallel) |
| Input Temperature Sensor | Thermocouple models: K, J, T, E, N, R, S, B, L, U, TXKRTD input models: PT100, JPT100RTD: Cu50, Ni120 |
| Control Method | PID, Programmable PID, Manual, or On/Off |
| Control Output Types | Relay output: SPST, max 250V AC, 3A resistive loadVoltage pulse output: 12V DC, max 40mACurrent output: DC 4~20mA (load impedance <500Ω)Analog voltage output: 0~10V (load impedance >1,000Ω) |
| Sampling Cycle | Thermocouple or RTD: 1.0 s / all inputs |
| Communication Function | RS-485 digital communication, supports 2,400~115,200 bps |
| Communication Protocol | Modbus RTU/ASCII format |
| Vibration Resistance | 10~55Hz, 10 m/s², 3-axis, 10 min |
| Shock Resistance | Max 300 m/s², 3-axis, 6 directions, 3 times each |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~65℃ |
| Operating Altitude | Below 2,000 m |
| Operating Humidity | 35~85% RH (non-condensing) |
| Item | Specifications |
|---|---|
| Product Name | Modular Expansion Temperature Controller |
| Input Power | 24V DC, probe-type switch power |
| Operating Voltage Range | Rated voltage 90%~110% |
| Power Consumption | 3W + 3W × DTC2000 per unit (up to 7 units can be connected in parallel) |
| Input Temperature Sensor | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXKRTD: PT100, JPT100Analog input: 0~5V, 0~10V, 0~20mA, 4~20mA, 0~50mV |
| Control Method | PID, Programmable PID, Manual, or On/Off |
| Control Output Types | Relay output: SPST, max 250V AC, 3A resistive loadVoltage pulse output: 12V DC, max 40mACurrent output: DC 4~20mA (load impedance <500Ω)Analog voltage output: 0~10V (load impedance >1,000Ω) |
| Sampling Cycle | Analog input: 0.15 s; Thermocouple or RTD: 0.4 s |
| Communication Function | RS-485 digital communication, supports 2,400~38,400 bps |
| Communication Protocol | Modbus RTU/ASCII format |
| Vibration Resistance | 10~55Hz, 310 m/s², 3-axis, 10 min |
| Shock Resistance | Max 300 m/s², 3-axis, 6 directions, 3 times each |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~65℃ |
| Operating Altitude | Below 2,000 m |
| Operating Humidity | 35~85% RH (non-condensing) |
| Item | Specifications |
|---|---|
| Product Name | Valve-Specific Temperature Controller |
| Input Power | 100~240V AC, 50/60Hz |
| Operating Voltage Range | Rated voltage 85%~110% |
| Power Consumption | Less than 5 VA |
| Display Method | Dual-row seven-segment LED, displays 4 digits plus 2-digit valve opening;Current temperature: red, set temperature and valve opening: green |
| Input Temperature Sensor | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXKRTD: PT100, JPT100Analog input: 0~5V, 0~10V, 0~20mA, 4~20mA, 0~50mV |
| Display Scale | Selectable: 1 decimal place or none |
| Control Method | PID, Programmable PID, Manual, or On/Off |
| Control Output Types | Relay output: SPDT, max 250V AC, 5A resistive loadCurrent output: DC 4~20mA |
| Sampling Cycle | Analog input: 0.15 s; Thermocouple or RTD: 0.4 s |
| Communication Function | RS-485 digital communication, supports 2,400~38,400 bps |
| Communication Protocol | Modbus RTU/ASCII format |
| Vibration Resistance | 10~55Hz, 10 m/s², 3-axis, 10 min |
| Shock Resistance | Max 300 m/s², 3-axis, 6 directions, 3 times each |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~65℃ |
| Operating Altitude | Below 2,000 m |
| Operating Humidity | 35~80% RH (non-condensing) |
| Panel Protection Rating | IP65 |
