Delta Standard DMCNET Motion Control Axis Card – PCI-DMC-A02

PARAMETRI DEL PRODOTTO

  • Built-in 32 digital inputs and 24 digital outputs for fast-response local I/O
  • Supports DMCNET™ Host functionality, controlling up to 12 stations and 12 motion axes
  • Integrated handwheel input interface for precise manual control
  • Communication cycle of 1 ms and extended I/O for flexible industrial motion control
Descrizione
Domande frequenti
Richiesta di preventivo

Descrizione

CARATTERISTICHE DEL PRODOTTO

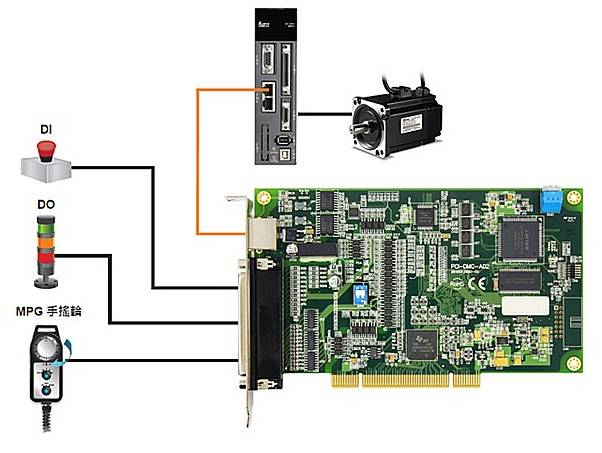

The Delta PCI-DMC-A02 motion control axis card features 32 digital input points and 24 digital output points directly on the axis card, providing a fast-response local I/O interface without requiring remote module communication.

This design not only accelerates operational response but also eliminates the need for additional remote expansion modules, saving cost and setup complexity.

Delta has integrated a handwheel input interface for users who require manual control, ensuring precise and intuitive operation.

The PCI-DMC-A02 supports DMCNET™ Host functionality, controlling up to 12 stations including 12 motion axes, with a communication cycle of 1 ms, extended local I/O, and handwheel support for complete motion control flexibility.

SPECIFICHE TECNICHE

OptionPCL-DMC-A02 Specification
Supported Drive ModulesDelta Servo Drives: ASDA-A3-F / ASDA-A2-F / ASDA-B3-F / ASDA-B2-F
Origin Return Modes35 modes (configurable via DMCnet parameters)
Motion Speed Switching ControlT-curve, S-curve
Interpolation ModesLinear, Circular, Helical, Continuous
Ring1 set
Supported Programming LanguagesVB, VC, BCB, Delphi, C#, VB.NET, LabVIEW
Transmission CableCategory 5e STP Ethernet cable (24AWG/4 Pairs)
Communication DistanceUp to 30 m (12 slave modules)
Serial InterfaceHalf duplex RS-485 with transformer isolation
PCI SpecificationVer 2.2; supports 32-bit, 3.3V/Vcc operation
Power Consumption+5V DC at 1A typical
Operating EnvironmentOperating Temp: 0℃ ~ 50℃; Storage Temp: -20℃ ~ 70℃; Humidity: 5~95% RH (non-condensing)
Maximum Connectable Modules12
Digital Input Channels32-CH isolated, SINK/SOURCE type, 24V DC (5 mA/CH)
Digital Output Channels24-CH isolated, SINK, 24V DC (100 mA/CH)
Noise ImmunityIsolation Voltage: 1500V DC (Primary-secondary), 1500V DC (Primary-PE)ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air DischargeEFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2KV, Communication I/O: 1KVRS (IEC 61131-2, IEC 61000-4-3): 2.6 MHz ~ 1 GHz, 10 V/m
