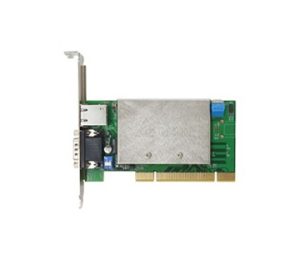

Delta Advanced EtherCAT Motion Control Axis Card – PCI-L221-B1D0

PARAMETRI DEL PRODOTTO

  • Supports EtherCAT Host functionality for distributed automation
  • Controls up to 32 motion axes across 64 stations
  • High-speed communication with minimum 0.5ms cycle
  • Compare Trigger functionality for precise motion control
Descrizione
Domande frequenti
Richiesta di preventivo

Descrizione

CARATTERISTICHE DEL PRODOTTO

The Delta PCI-L221-B1D0 Advanced EtherCAT Motion Control Axis Card supports EtherCAT Host functionality, delivering high-performance motion control for distributed automation systems.

It can control up to 64 stations, including 32 motion axes, providing precise and synchronized multi-axis operations.

The card supports high-speed communication cycles down to 0.5ms, ensuring responsive and accurate motion control performance.

Additionally, the PCI-L221-B1D0 features Compare Trigger functions, including 1-CH Interval (100 kHz) and 1-CH Table (40 kHz), enabling precise triggering for advanced automation applications.

SPECIFICHE TECNICHE

ArticoloSpecifiche
Number of Units1 set
Serial Control PortRJ45
Transmission CableCAT-5e
Transmission Speed100Mbps
Communication RangeUp to 100m
Master/Slave ModulesUp to 64
Motion ControlSynchronized control up to 32 axes
Digital Inputs13-CH isolated, SINK/SOURCE type, 24Vdc (5mA/CH)
Digital Outputs13-CH isolated, SINK, 24Vdc (100mA/CH)
Encoder Inputs2-CH isolated, EA+, EB+
Comparator Outputs2-CH isolated, CMP+ / EMP+
Technical StandardPCI Spec. 2.2, supports 32-bit, 3.3V/Vcc operation
Power Consumption+5Vcc at 1A typical
Temperatura di esercizio0°C ~ 50°C
