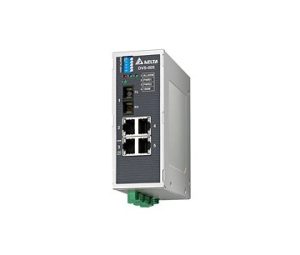

Delta DVS-005W01-SC01 Fast Ethernet Switch — 5-Port

PARAMETER PRODUK

  • Dual 12–48 VDC redundant power input
  • Relay alarms for power failure or port disconnection
  • Supports 5 Fast Ethernet ports
  • Industrial protocol compatibility (EtherNet/IP, Profinet, CC-Link IE, DNP 3.0)
Deskripsi
Pertanyaan Umum
Minta Penawaran

Deskripsi

FITUR PRODUK

The Delta DVS-005W01-SC01 is a reliable 5-port Fast Ethernet switch designed for industrial and enterprise networks. It features dual 12–48 VDC redundant power inputs for continuous operation.

The switch provides relay alarms for power failure or communication port disconnection, enhancing network reliability and safety.

It supports industrial protocols including EtherNet/IP, Profinet, CC-Link IE, and DNP 3.0, ensuring seamless integration with automation and control systems for stable and efficient network performance.

SPESIFIKASI TEKNIS

CategoryParameterSpesifikasi
StandardProtocolIEEE 802.3 10Base-T
IEEE 802.3u 100Base-T(X) and 100Base-FX
IEEE 802.3x Flow Control
Switching TechnologyTypeStore and Forward
Flow ControlIEEE 802.3x Full-Duplex Flow Control, Half-Duplex Backpressure Flow Control
InterfaceEthernetFast Ethernet
RJ45 Ports4 × 10/100Base-T(X), Auto MDI/MDI-X, Auto-negotiation and Link Speed Detection
Fiber Port1 × 100Base-FX (SC connector), Single-Mode Fiber – 30 km
Alarm Output (DO)1 set Relay, Maximum Current 5 A @ 24VDC
PerformanceSwitching Capacity1 Gbps, Linear, Non-blocking
Packet Forwarding Rate1.5 Mpps
MAC Address Table1K
Packet Buffer Size512K bits
Power RequirementsInput Voltage12 ~ 48 VDC, 2 terminal blocks
Maximum Input Current0.24 A
Overcurrent ProtectionBuilt-in, Maximum 3 A
Reverse Polarity ProtectionBuilt-in
Hold-up TimeMinimum 13 ms at 24VDC
MechanicalPerumahanIP40 Reinforced Aluminum Alloy
Dimensions (H × W × D)145.3 mm × 45 mm × 108.7 mm
Weight300 g
MountingIndustrial DIN Rail & Wall Mount
EnvironmentOperating Temperature-40℃ ~ 75℃ (-40℉ ~ 167℉)
Storage Temperature-40℃ ~ 85℃ (-40℉ ~ 185℉)
Operating Humidity5% ~ 95% (Non-condensing)
CertificationSafetyUL 508, EN 60950-1, IEC 61131-2
EMIFCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55022
EMSIEC 61000-6-2
Industrial Environment TestsLow TemperatureIEC 60068-2-1
High TemperatureIEC 60068-2-2
HumidityIEC 60068-2-30
ShockIEC 60255-21-2
Free FallIEC 60068-2-32
VibrationIEC 60068-2-6
Hi-Pot1.5 KV
