PARÁMETROS DEL PRODUCTO

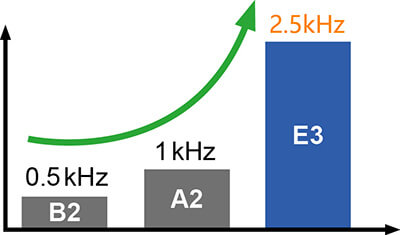

Fast Response & High Bandwidth: Speed loop up to 2.5 kHz.

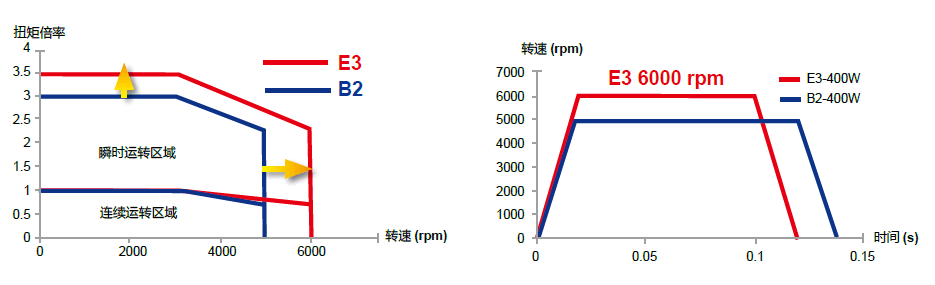

High Speed & Torque: Maximum 6000 rpm, 3.5× overload torque.
Compact Design: 20% smaller drive, 25% smaller motor.

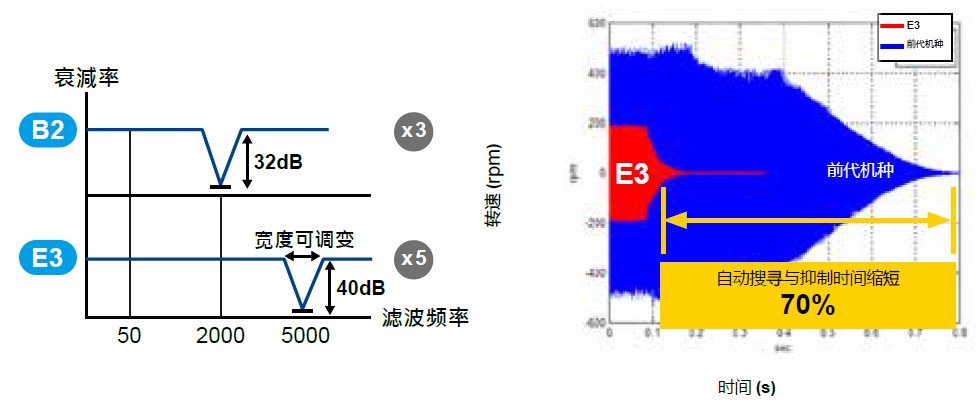

Vibration Suppression: Automatic high-frequency resonance control up to 5000 Hz.

SOLICITAR PRESUPUESTO

Descripción

Preguntas frecuentes

Solicitar presupuesto

Descripción

CARACTERÍSTICAS DEL PRODUCTO

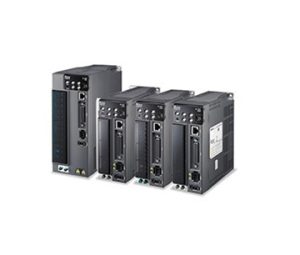

The Delta ASDA-E3 Series AC Servo System is a basic servo solution designed for simplified wiring and user-friendly operation. Paired with ECM-E3 motors, it delivers fast response and stable motion control for general industrial automation applications including transmission, conveying, and positioning tasks.

Covering a power range of 0.1 kW to 3 kW and supporting AC 200–230V single-phase or three-phase input, the ASDA-E3 system provides position, speed, and torque control modes. High-resolution optical encoders (22-bit) and magnetic encoders (17-bit) ensure precise positioning, while compact drive and motor sizes save installation space.

Enhanced performance features include a maximum speed of 6000 rpm, torque overload up to 3.5 times, and high-frequency vibration suppression up to 5000 Hz. These improvements enable higher bandwidth response, optimized control stability, and increased operational efficiency in industrial automation systems.
